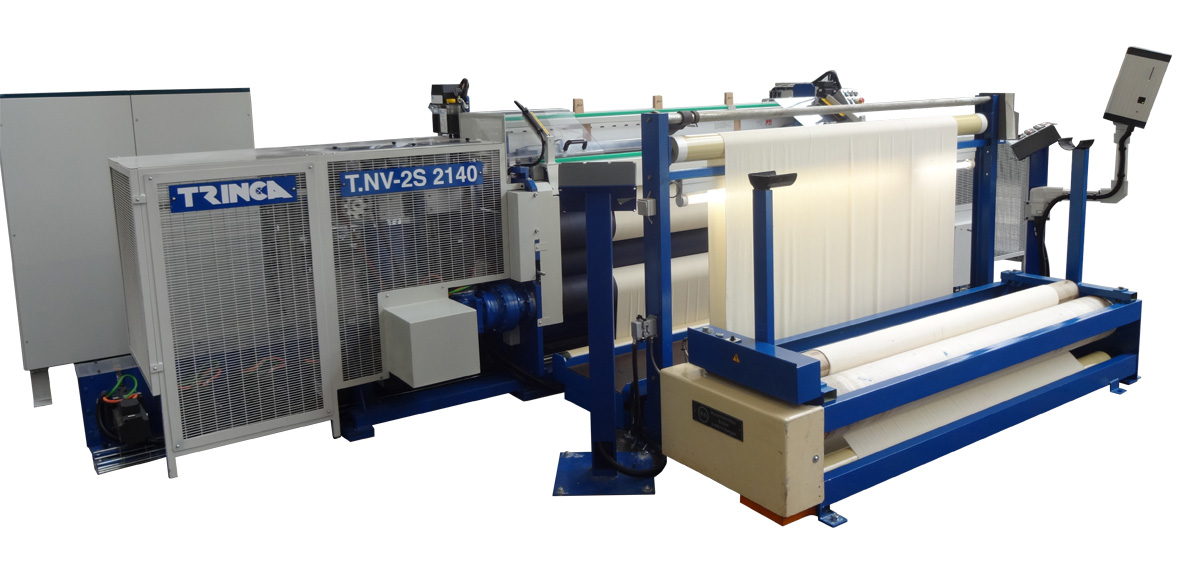

MOD. T.NV-2S 2140

Weaving industrial machines for Synthetic fabrics

SHUTTLE LOOMS WITH AUTOMATIC CHANGE SPOOL DEVICE TYPE UNI-E 250 FOR TECHNICAL FABRICS, DENIM, AND UNLESS FABRICS

T = weaving machine
NV = with 1 Shuttle
2S = with 2 Servomotors
2140 = weaving width (on request be possible all weaving width)

TECHNICAL FEATURE OF THE LOOM

• Maximum weaving width: mm. 2140 – min. mm. 1000 (on request be possible all weaving width);
• The loom is suitable for weaving tubular fabrics and flats;
• Adjustable wire/cm. max. 200 – min. 5;
• Max speed from 150 rpm;
• Maximum warp tension: daN/m 1500.

SHUTTLE DRIVING SYSTEM (TRINCA PATENTED)

controlled by:

• 2 toothed racks driven by Servomotor and mounted at the left and right of the weaving machine; (the toothed cracks throw the shuttle from right to left and the other way round)
• 2 motorized brakes auto-setting by PC that block shuttle in position exact;

ELECTRONIC, ROTARY DOBBY TRINCA TYPE R.E.R 12

Dobby type explanation:

R = Dobby
E = electronically controlled
R = rotary
12 = suitable for driving from 2 to 52 heddle frames

• Dobby control by the means of the loom main PC
• Operating mode: OPEN SHED and CLOSED SHED setting to be selected by the PC-program
• easy “0” point setting of the heddle frames
• manually control and separate position setting of each single heddle frame
• adjustment possibility of the heddle frame timings and stops
• adjustment possibility of the heddle frame phase timing and exchange.

ELECTRONIC DEVICE UNIFIL TYPE UNI-E 250:

UNI = unifil
E = electronic
250 = length shuttle mm. 250
complete with device winding shuttle with automatic direct change in the weaving machine and with adjustment of the parameters by PC.

LOOM CONTROL DEVICE:

The complete loom control, all data settings and operating function adjustments are carried out by the TRINCA electronic control device and the especially developed TRINCA loom managing All electronically and electric control devices are installed inside the main switchboard and all data’s, as well as loom driving and control functions, are developed by an industrial PC with software windows CE.
