MOD. T.N.E/PS

Weaving industrial machines for Metal wire mesh

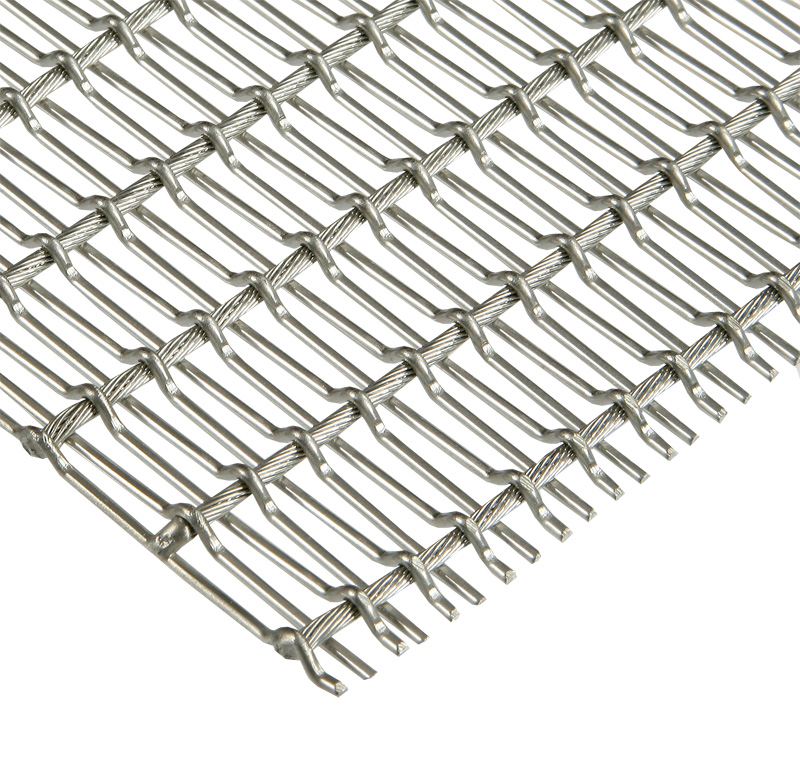

Looms able to weave architectonic fabrics, transport belts fabrics and heavy fabrics with steel cable

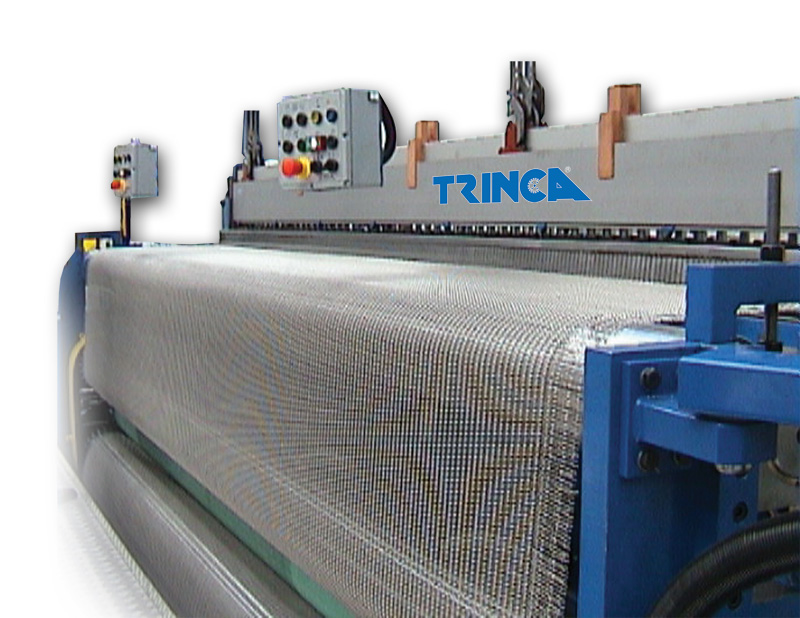

The new TRINCA loom series type T.N.E/PS has been designed, developed and manufactured to satisfy the market requirements of heaviest metal fabric with weaving width from 2 up to 8 meters and more.
The patented TRINCA Bandrapier System allows to insert weft materials as: pre-cimped or fl at, as well as fl exible or rigid metal wires with a minimum diameter from 0,10 up to maximum 6 mm.
The TRINCA crimping device type ON 60, and the TRINCA uncoiling reel types AS 1000 are essential necessary additional equipments for the production of special fabrics, woven with pre-crimped wires or fl at wefts with major wire diameters.
The TRINCA crimping device type ON 60, the TRINCA uncoiling reel type AS 1000 and the TRINCA LOOM type T.N.E/PS are electrically connected and synchronized, one to the other.
A special developed software controls, synchronized and driver automatically all functions of the three together connected machines, with excellent results of hight production output and most reliable control precision for weaving top quality products.

CRIMPING DEVICE TRINCA TYPE ON 60 - ON 80 - ON 120 FOR PRE-CRIMPED WARP AND WEFT WIRES

• Crimping device ON 60 - wire diameter an resistance R1400 Nm², min diam. mm 1 - max diam mm 5
• Crimping device ON 80 - wire diameter an resistance R1400 Nm², min diam. mm 3 - max diam mm 8
• Crimping device ON 120 - wire diameter an resistance R1400 Nm², min diam. mm 4 - max diam mm 12
• Crimping gears diameter: min. 170 mm. - max 220 mm.
• Driving motor with speed adjustment synchronized with the loom
• Wire crimping operating speed: from 0 up to 120 meters/minute
• Device controlled by a PLC with key setting possibility of the operating speed, accelerations and decelerations.
• Pushbutton panel for all control functions, with a display which shows the operating speed, the accelerations and decelerations
• Numerical keyboard for the programming functions
• Possibility of setting the required length of the wires to be crimped, with an automatically wire cut at the pre-setted length
• Number counter of the wires to be crimped and function stop if the setted number has been reached

WIRE UNCOILING REEL TRINCA TYPE AS 1000

• Diameter of the coil supporting disk: max 1000 mm.
• Maximum carrying capacity of the reel: 1000 Kg
• Uncoiling speed adjustable from min. 0 up to max 150 rpm
• Driving motor AC - 4p - 1450 rpm - 4 Kw - 400 V - 50 Hz
• Device controlled by a PLC with key setting possibility of the operating speed accelerations and decelerations
• Pushbotton panel for all control functions, with a display which shows the operating speed, the accelerations and decelerations.
• Numerical keyboard for the programming functions
